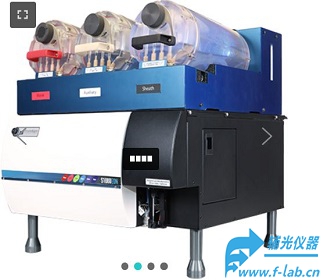

这款
流式细胞仪具有*多的颜色和激光,不仅将参数数量从22个增加到30个，激光器的数量从4个增加到6个，吞吐量翻了一番，创建了*多的空间分离的询问点，并将这款流式细胞仪灵敏度提高到了300%！
流式细胞仪特点
可配置和可扩展多达6个激光器和30个参数
保修期两年
分辨率<2.5%CV
行业lingxian的灵敏度<80 MESF
广泛的粒径范围从0.2µm~40µm
获**的第三代智能检测™ 技术
**激光微调技术，可同时检测0.2微米以下的颗粒µm到7µ米
**OptiSymmetric™ 励磁结构
**幽灵探测™ 无物理触发的背景荧光测量模块
与自动化选项无缝集成
![$title]( "$title")
流式细胞仪规格参数
激光器部分:
- 支持6个激光器
- 可选激光器:
- Solid-state 372 nm – 100 mW
- Solid-state 405 nm – 100 mW
- Solid-state 488 nm – 150 mW
- Solid-state 532 nm – 100 mW
- Solid-state 552 nm – 100 mW
- Solid-state 561 nm – 100 mW
- Solid-state 640 nm – 100 mW
- Solid-state 805 nm – 100 mW
探测器参数和数据采集
- 动态范围:
- 采集: 5 decades
- 分析: 7 decades
- 线性： R2 > 99%
- 前向散射 (FSC) – enables separation of unfixed platelets from noise
- FSC resolution: < 500 nm polystyrene beads
- FSC scales: log and linear
- FSC parameters: width, peak-height, area
- Optional FSC photomultiplier (PMT) detector
- Optional Quad-FSC: 375, 405, 488, and/or 640 nm
- Side scatter (SSC) – resolves lympho-, mono-, and granulocytes
- SSC resolution: < 200 nm polystyrene beads
- SSC scales: log and linear
- SSC parameters: width, peak-height, area
- Optional Dual-SSC: 405 and/or 488 nm
- Fluorescence channels:
- Standard number of colors: 26
- Sensitivity: < 80 MESF
- PMT scales: log and linear
- PMT parameters: width, peak-height, area
- Time: 13 μsec resolution
Analysis Rate and Carryover:
- Analysis rate: up to 20,000 events/sec
- Carryover: < 0.1% with automatic backlash between samples
Sample Input:
- Dead volume: < 8 μL
- Minimum sample volume: < 20 μL
- Maximum particle size: 40 μm
- Patented low insertion force single tube loading
Fluidics Tray:
- Integrated fluidics tray does not increase the footprint of the flow cytomer
- Automated startup, shutdown, and cleaning cycles
- Automated decontamination procedure using onboard cleaning solution for all components in contact with sample
- Tank Capacity: 4 L sheath, 4 L waste, 4 L auxiliary solution
- Optional automated sheath tank fill and waste drainage
Operating Conditions:
- Operating Conditions: 60-86 °F (15-30 °C)
- Size (including fluidics tray): 21.5″ W x 21″ D x 24″ H (54.6 cm W x 53.3 cm D x 61 cm H)
- Weight (including fluidics tray): < 70 lbs (35 kg)
- Power: 110/115/230 VAC, 50-60 Hz
Patents:
U.S. Patent No. 7821631B1
U.S. Patent No. 8202059B1
U.S. Patent No. 8202733B1
U.S. Patent No. 8570500B2
U.S. Patent No. 9108196B1
U.S. Patent No. 9857284B1
U.S. Patent No. 9952136B2
